| Item | Android | |
| Main Board | ||
| CPU | RK 3288 Quad core 1.8G | |
| Memory | 2G RAM | |
| Storage | EMMC flash 8G | |
| OS | Android 5.1 /6.0/7.0 | |
| Display | ||
| LCD display | 11.6 Inch LED TFT | |
| Brightness | 220 nits | |
| Resolution | 1366*768 | |
| Touch Screen | Capacitive Multi Point Touch | |
| I/O Port | ||
| Serial | 2*COM port, COM2 is customer display | |
| USB | 5*USB2.0(External: 4 in IO panel, 1 beside the power button)2*USB2.0( Internal, reserved for touch screen, MSR) | |
| LAN | 100Mbps RTL8201F | |
| HDMI | / | |
| VGA | / | |
| Power | 12V 5ADC 60W, 2-pin Connector with Lock( InternalAdaptor:100~240VAC, 50~60Hz) | |
| Audio | 1 * headphone socket left and right dual channel output support 4RG 3Wspeakers | |
| External storage card | TF card maximum support 128G | |
| Others | ||
| Power Input | 12V 5ADC 60W, 2-pin Connector with Lock( InternalAdaptor:100~240VAC, 50~60Hz) | |
| Dimension（mm） | 360*470*530mm | |
| Working Temperature | 0℃ to 40℃ | |
| Storage Temperature | -20℃ to 60℃ | |
| Color | Black | |
| Certificate | CE, ROHS,FCC | |
| Optional | ||
| Customer | 2*20 LCD / 2*20 VFD | |
| Wi-Fi | IEEE802.11b/g | |
| Bluetooth | Bluetooth 4.0 | |
| MSR | 3 track | |
| RFID K | 13.56Mhz or 12.5K | |
| I-Button | Dallas key RS232 USB I/F | |

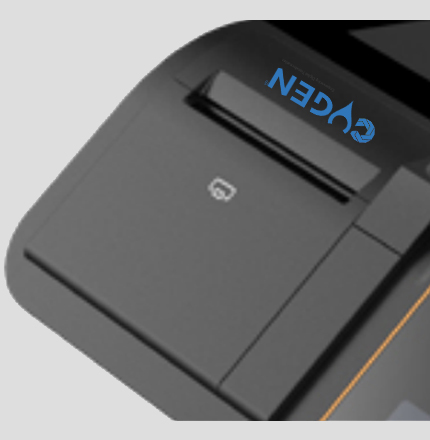

| Printer | 58mm/80mm Thermal Printer | |
| scanner 2D | scanner 2D | |
| Packing Size | 40*42*19cm | |
| Gross Weight | 5.5kgs | |
