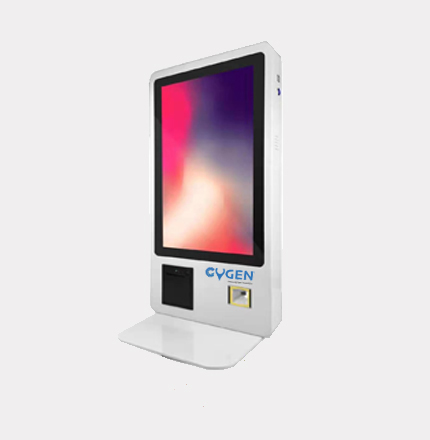

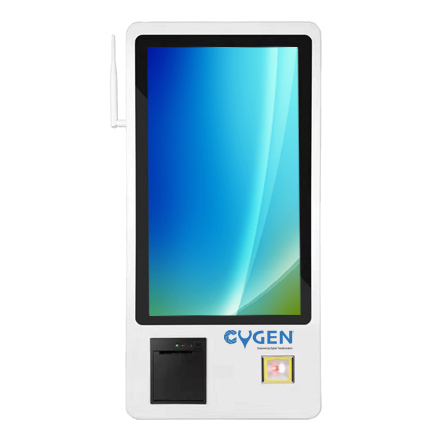

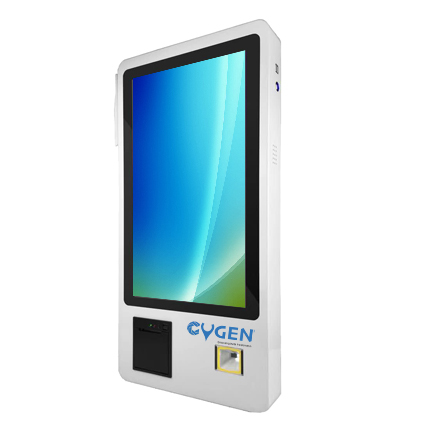

Self-service Ordering Kiosk

Unit Cost: $1990

  •   21.5 Inch Touch Screen
  •   DV 12V input, safe and convenient for customers.
  •   Industrial-Grade Components and Optional Peripherals.
  •   Various Application Scenarios
  •   Different installation options are available with CYGEN. Store owners may install it wherever in their premises according to the floor stand design.
  •   Modular design allows clients to customize a superexcellent self-service payment kiosk system
  •   Providing significant configuration flexibility for the operating system, colour, hard drive, memory, and CPU.

Screen

  •  Size:21.5 inch
  •  Touch: Yes, Capacitive Touch Screen
  •  Excellent brightness for the screen

Interface

  •  With Wifi/ RJ45/USB/ HD-MI-OUT.

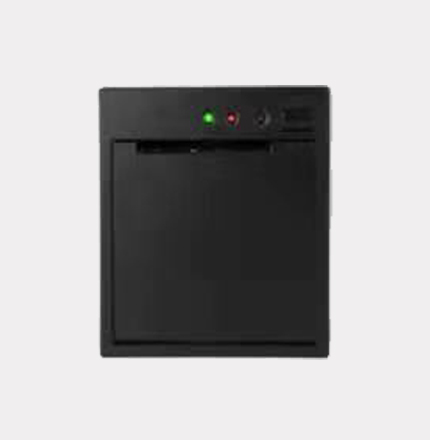

Printer

  •  Type: Thermal
  •  Receipt Size:: 80 mm
  •  Scan: QR code scan
  •  NFC: Yes
  •  Camera: 2.0MP/ 5.0MP

Installation

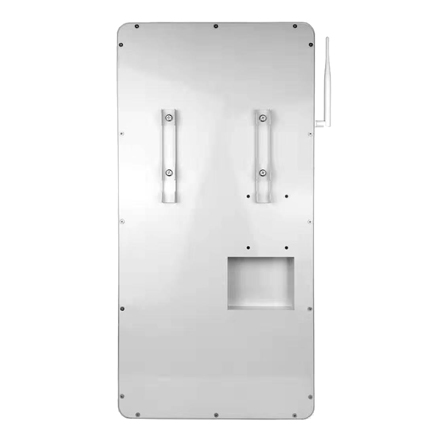

  •  Wall mount

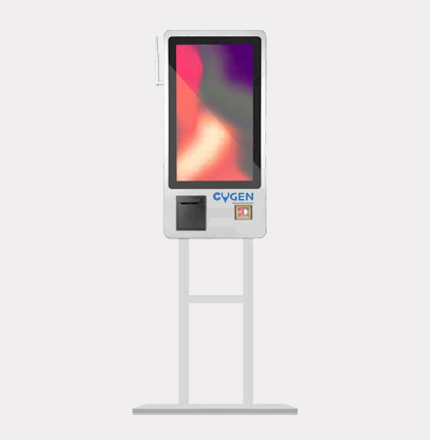

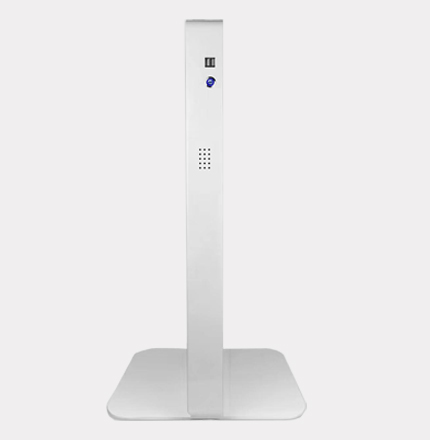

  •  Floor stand
Item Specification
Color Black, White, Customized
CPU RK3288, Quad-Core Cortex-A17, up to 1.8Ghz
Memory 2G/4G RAM
Storage 16GB/32GB/64GB ROM
OS Android 7.1
Screen Size 21.5 Inch LED
Resolution 1920*1080
Touch Screen Capacitive Multi Point Touch
Build-in Printer 58mm Thermal Printer
Build-in Scanner Support1D/ 2D Scanning
Input 110-240VAC 50-60Hz)
Output DC 12V 7A
Working Temperature 0℃ to 40℃
Storage Temperature -10℃ to 60℃
Interface(I/O Ports) 2*USB, 1* HDMI, 1*SD, 1*MINI USB, 1*RJ45
WIFI Support 802.11 /b/g/n 2.4/5 G (Optional)
Louder Speaker 3W*2 (Optional)
MSR 3 Track MSR Optional
NFC Reader Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols - tag read/write (ISO/IEC-18902)
Bluetooth Support 2.1/3.0/4.0 (Optional)
SIM Card Support 2G/3G/4G (Optional)
