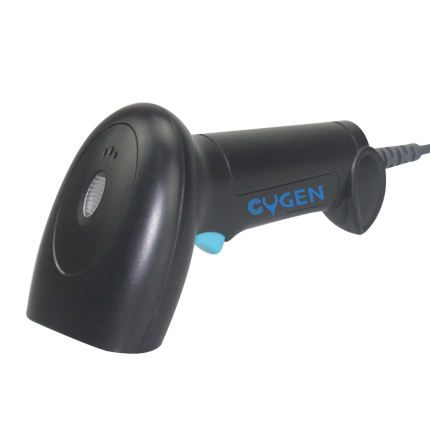

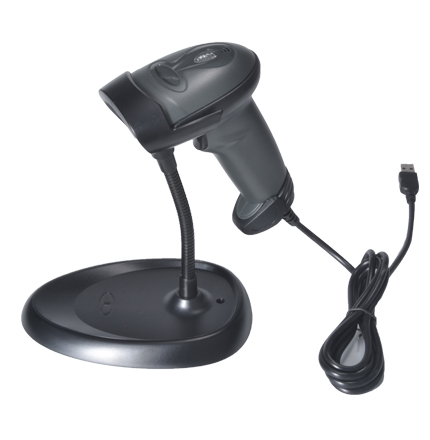

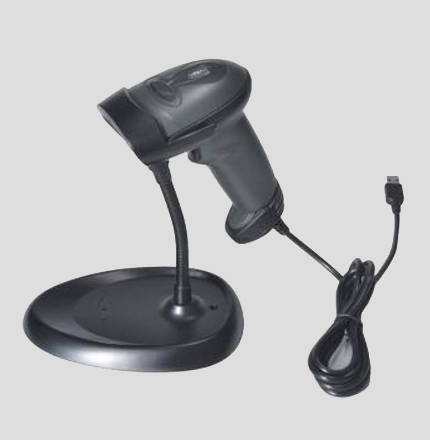

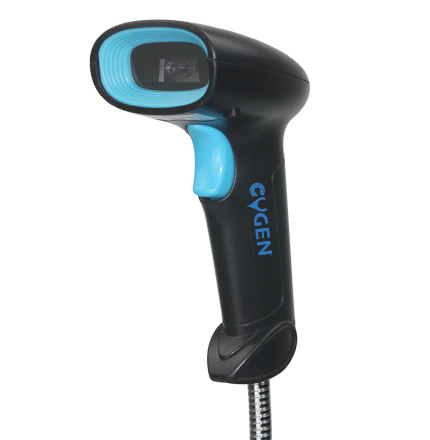

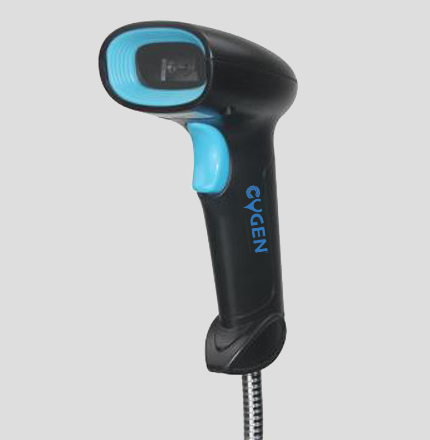

POS BARCODE SCANNER (Handheld)

Unit Cost: $90

  •   Can decode most 1Dand 2D
  •   Using the most advanced decoding algorithm
  •   Ergonomic design, comfortable to hold
  •   2.4G Wired
  •   Can scan screen bar codes on devices like computers and mobile phones.
  •   Application fields:Supermarket, Retail, Warehouse,Logistic,etc.

Solid anti-oxidation protective shell

  •  Anti-oxidation and high hardness materials are used to create the protective shell, which can extend the scanner's service life.

Fast and Effective Charging Interface

  •  Through the unique self-contained data line, the charging jack connects directly to a USB port for charging.

The high-rebound button

  •  When the scanner is unable to function, the quick rebound button causes it to automatically go into standby mode.

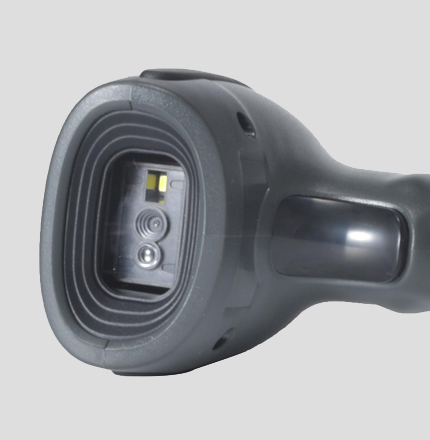

For anti-falling, a high-quality laser head

  •  Physical anti-fall transparent panel that can scan and decode a range of barcodes is robust and long-lasting.
Item Specification
Photo Sensor CMOS Array Sensor
Resolution 640 pixels(H)*480 pixels(v)
Light Aiming:617 nm LED; Illumination:6500K LED
Read Code System 2D: QR Code, Data Matrix, PDF417, Aztec1D: UPC/EAN/JAN,UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128, Code 93,Interleaved 2 of 5 (ITF), Addendum 2 of 5, Matrix 2 of 5, Standard 25, IATA Code, Plessey, MSI/Plessy, China Postal Code, Code 32 (Italian Pharmacode), GS1-DataBar TM (RSS) ,(RSS 14, RSS-Limited, RSS-Expanded), AIM-128.
Scanning Distance 25-180mm @ UPC/EAN 13mil PCS=90%; 20-250mm @ QR 20mil PCS=100%
Indicating Mode Red LED Light, Buzzer
Communication interface TTL-232, USB
Scanning Frequency 300 times/s
Dimension 171mm*69mm*88mm
Package Dimension 220mm*70mm*95mm
Weight 180g(include USB cable)
Wire length 1.6m
Trigger Mode Key, Inductive Read,Continuous Read
Input Voltage 5VDC±10%
Working Current 200mA
Working Temperature -20℃~+60℃
Working Humidity 5%~95% (No condensation)
Storage Temperature -40℃~+70℃
