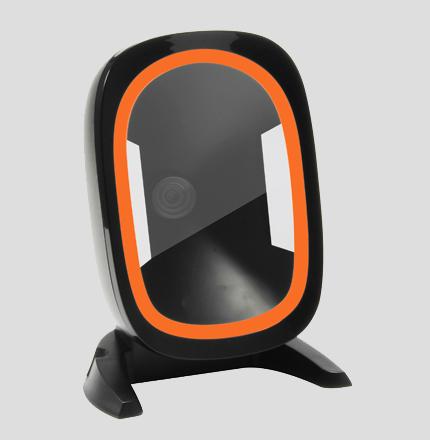

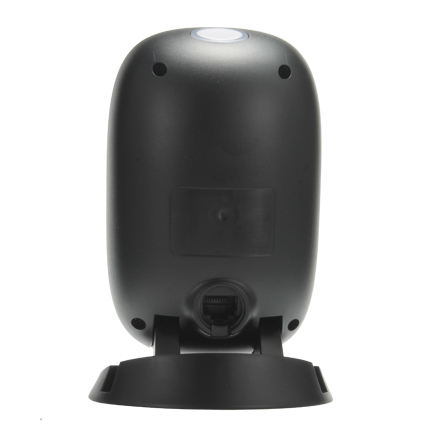

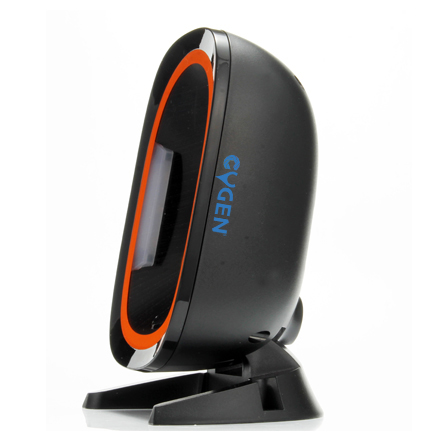

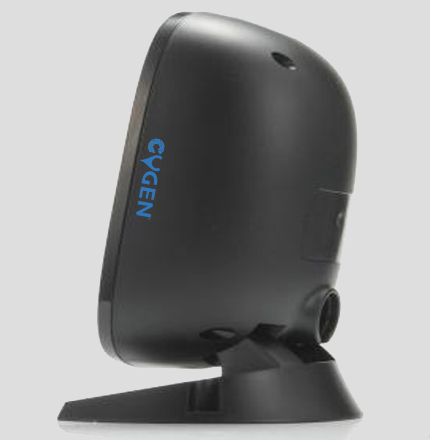

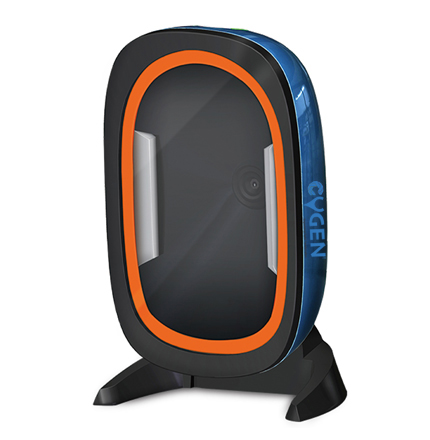

POS BARCODE SCANNER (Desktop)

Unit Cost: $110

  •   Using the most advanced decoding algorithm
  •   Blue and red LED indicator,double buzzer
  •   Can decode most 1Dand 2D
  •   USB and RS232 interface, automatically match device,plug and play
  •   Unique shape design,rotatable base.
  •   Can read screen bar codes such as mobile phones and computers..

Very quick infrared induction

  •  The white light becomes brighter as the thing being scanned gets closer to the scanning window, and the device powers on promptly and reads swiftly.

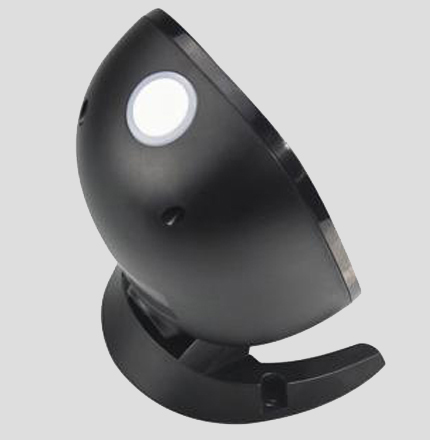

Adjustable Scanner Head

  •  There is a limited range of rotation for the scanning head. To make scanning easier, the scanner head's angle can be manually adjusted for the object being scanned.

Buzzer

  •  To avoid missing any information, the buzzer will make a clear and pleasing "drop" sound after a successful scan.

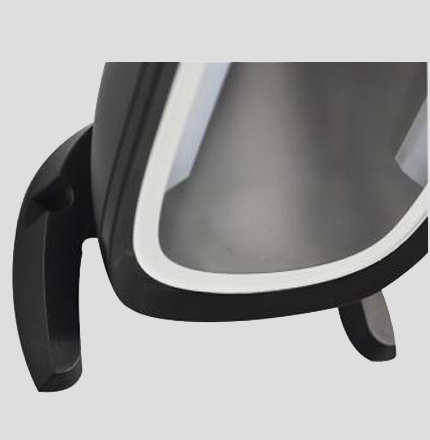

Anti-skid bottom

  •  Stable positioning, not easy to slide
Item Specification
Photo Sensor CMOS Array Sensor
Resolution 640 pixels(H)*480 pixels(v)
Light Aiming:617 nm LED ;illumination:6500K LED
Read Code System 2D: QR Code, Data Matrix, PDF417, Aztec, MAXICODE, Han letter code, etc.1D: UPC/EAN/JAN,UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, Matrix 2 of 5, Standard 25, IATA Code, Plessey, MSI/Plessy, China Postal Code, Code 32 (Italian Pharmacode), GS1-DataBar TM(RSS) , (RSS 14, RSS-Limited, RSS-Expanded), AIM-128.
Scanning Distance 20-200mm @ UPC/EAN 13mil PCS=90%; 0-150mm @ QR 20mil PCS=100%
Scanning speed 1650 times per second
Scan Angle Left and right 60°/Front and Rear 60°/Move360°
Field of view 48° horizontally, 30° vertical
Read Resolution ≥ 5mil
Print Contrast ≥25%
Indicating Method Red LED Light, buzzer
Communication interface RS-232, USB
Dimension 100mm*82mm*150mm
Weight 200g (Not include USB cable)
Wire length 1.8m
Trigger Mode Inductive Read, Continuous Read
Input Voltage 5VDC±10%
Working Current 400mA
Working Temperature -20℃~+60℃
Working Humidity 5%~95% (No condensation)
Storage Temperature -40℃~+70℃
Light Levels: 0~100,000 Lux
