Cash Drawer

Unit Cost: $99

  •   All steel construction, with stainless steel front
  •   Design made of solid, sturdy metal and two keys are provided.
  •   Black or off-white powder coated finish.
  •   Manual release, electronic release, and drawer lock are the three functions of a centre key lock.
  •   Standard ABS plastic money trays with inserts for 5 or 8 coins can hold 5 bills
  •   Five spring-loaded stainless steel clips for banknotes and checks.

Steel Key

  •  When you turn the key, the drawer opens by itself. To make the drawer automatically close, press it. The money box can be opened by pressing the keyboard shortcut.

Highly Compatible

  •  Common ticket machines, drive boxes, electronic scales, and cash registers can all be connected.

Support Rail

  •  The drawer moves easily since the guide rail has undergone rigorous testing.

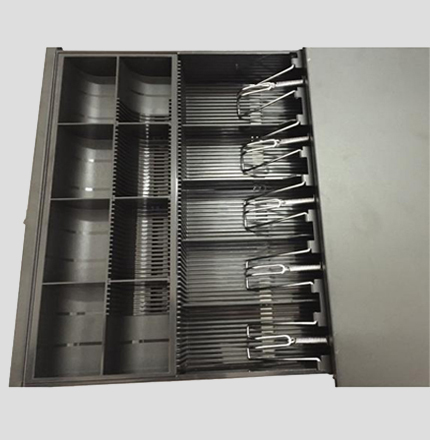

Flexible Lattice

  •  The lattice of the coin can be adjusted.

Safety Switch

  •  The key is used to lock the money box, which has an emergency switch that is difficult to find at the bottom. The money box cannot be opened by an emergency switch.
Item Specification
Dimensions 420L X 405W X 100H (mm)
16.5L X 15.9W X 3.9 H (inch)
Color Black (Ivory optional or customization)
Drawer Metal cash drawer with heavy-duty ball bearing rollers
Casing Steel construction
Front Panel Steel construction with painted front or stainless steel front (optional).
Load-bearing 60KG
Bill Tray Metal bill clips
Adjustable dividers for up to 5 compartments (with 5 metal clips)
Coin Tray  Removable tray from the money cash
Solo-row compartment adjustable dividers for 5 compartments
Double-row compartment with adjustable dividers for up to 8 compartments
Media slot Front access slot for check, credit card receipt, bill or any paper
Lockable Lid  Lockable Lid for the cash receiver to change trays (optional)
Lock 3-position Key Lock (two keys)
Emergent Release Emergent release lever on the chassis of drawer
Micro Switch / Sensor      Open by driver signal to the solenoid (optional)
I/O Interface  12V, 24V for RJ11 / RJ12 Receipt Printer Interface
9-Pin RS-232 Interface (optional)
USB Interface  (optional)
Durability 1,000,000 operations
